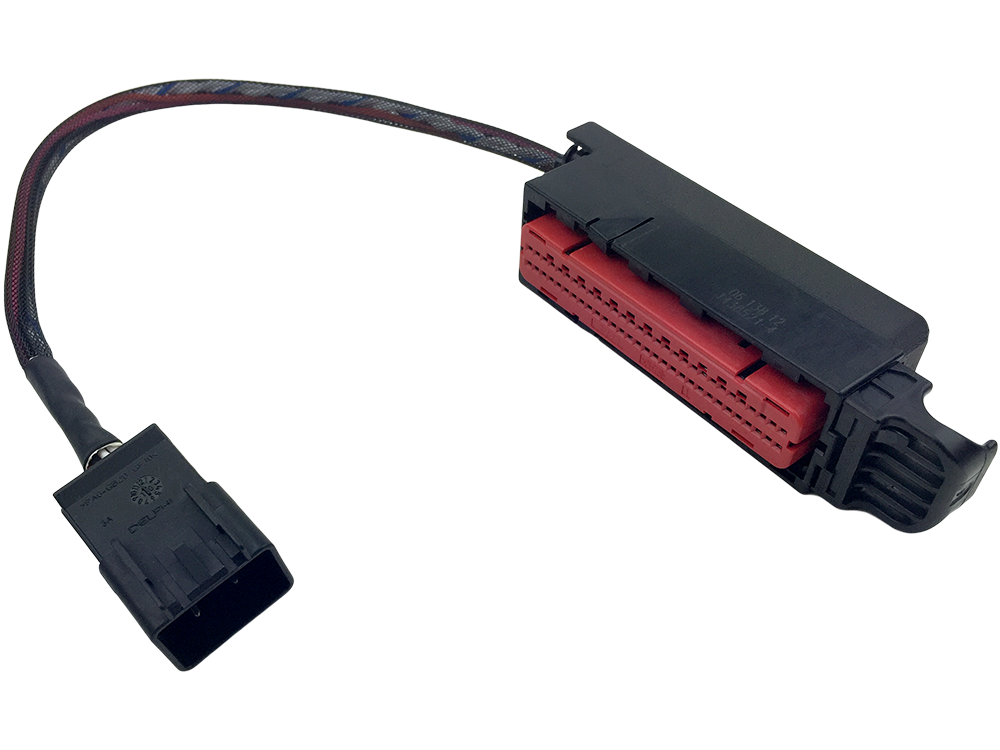

This harness is for 2011-2016 TorqShift Transmissions. For 08-10 please see our Transmission Module Bench Harness 08-10 Ford Power Stroke TorqShift 5R110Wm
| VEHICLE DETAILS | |
|---|---|
| MAKES: | Ford |
| MODELS: | F-250, F-350, F-450, F-550 |
| YEARS: | 2011-2016 |
| ENGINES: | 6.7L |
| MODULE: | Transmission Module |
| USAGE: | 2011-2016 Ford F-250/F-350/F-450/F-550 |
| ALIASES: | TorqShift 6, 6R140 Power Stroke |
| SUPPORTED COMMUNICATION PROTOCOL(S) | DLC PIN(S) |
|---|---|
| CAN BUS | 16 WAY OBD-II DLC PINS 6 & 14 |
POWERBLOCK CONNECTION
For communication on OBD-II DLC pins 6, 13, and 14, this harness requires Ford Pass-Through Harness to connect to PowerBlock. Ford Pass-Through Harness sold separately. |
