| VEHICLE DETAILS | |
|---|---|
| MAKES: | Chevrolet |
| MODELS: | Camaro |
| YEARS: | 2012-2015 |
| ENGINES: | |
| MODULE: | Instrument Panel Cluster |

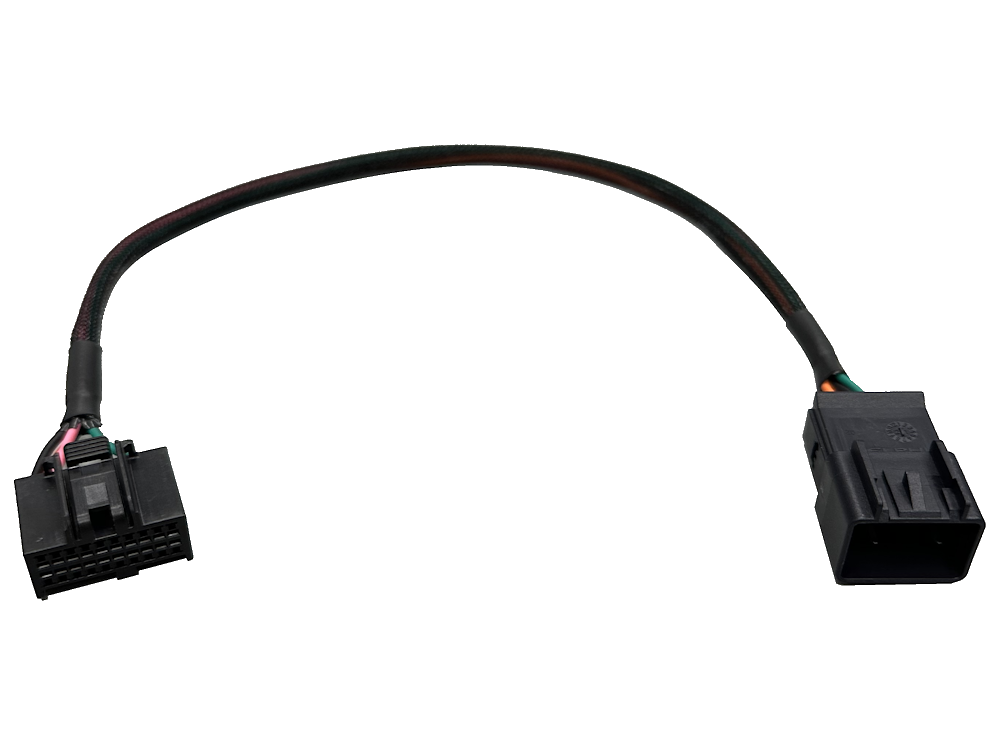

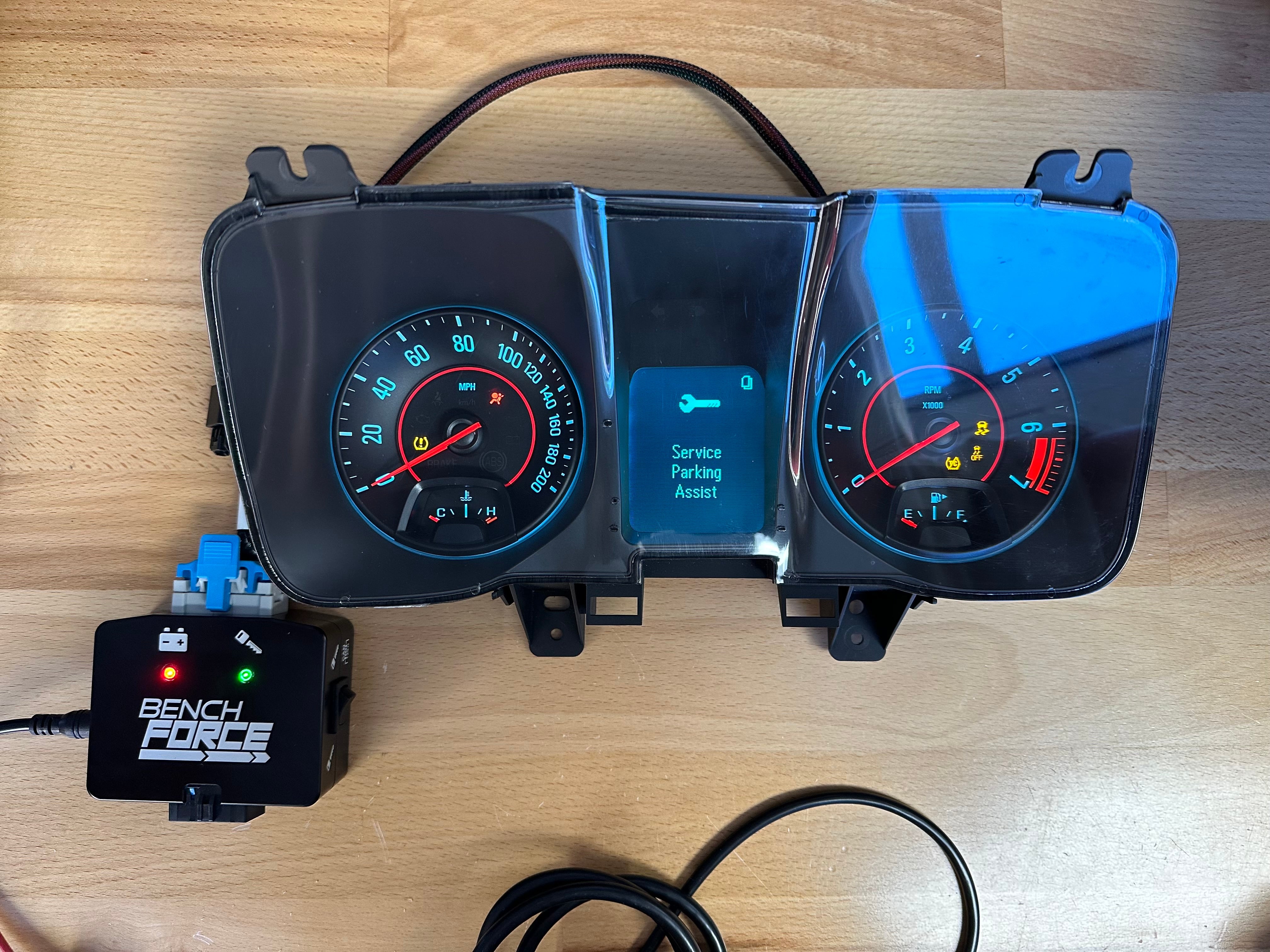

| USAGE: | 2012-2015 Chevrolet Camaro Instrument Panel Clusters |
| ALIASES: | |
| SUPPORTED COMMUNICATION PROTOCOL(S) | DLC PIN(S) |
|---|---|
| GMLAN LOW SPEED | 16 WAY OBD-II DLC PIN 1 |
POWERBLOCK CONNECTION
For communication on OBD-II DLC pins 2, 6, and 14, this harness requires OBD-II Pass-Thru Harness. OBD-II Pass-Thru Harness sold separately. This harness requires dependent communication with another ECU. Y-Splitter Harness BF01200 is required to connect two ECU harnesses on the bench. Y-Splitter Harness sold separately.  |
