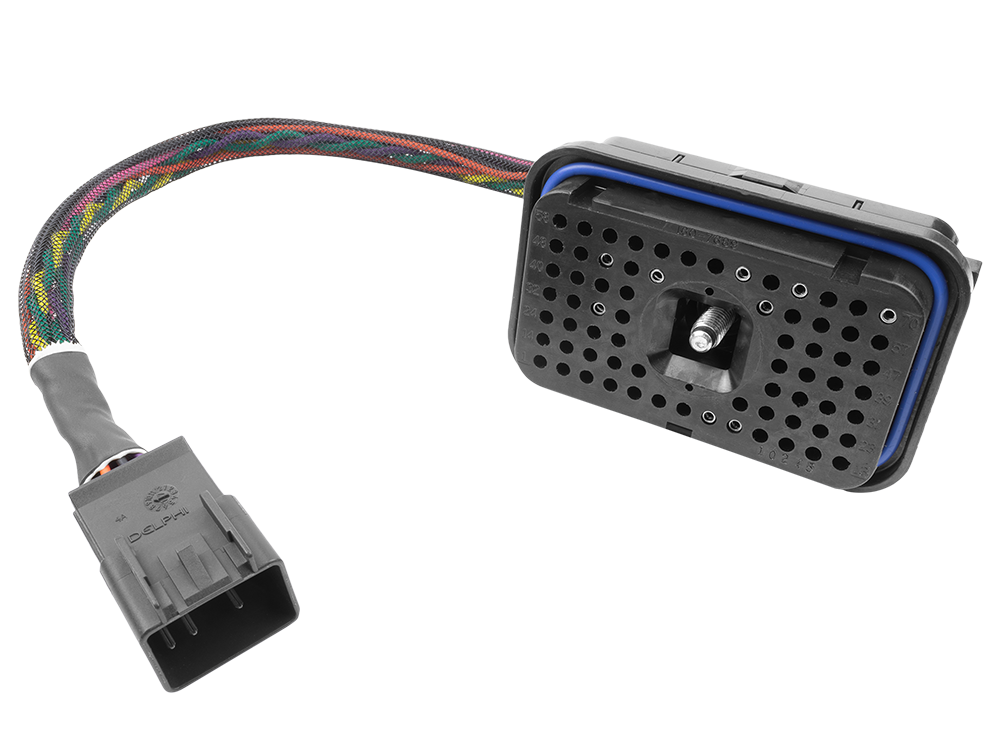

| VEHICLE DETAILS | |
|---|---|
| MAKES: | Caterpillar |
| MODELS: | |
| YEARS: | |
| ENGINES: | 70 Pin |
| MODULE: | Engine Module |
| USAGE: | |
| ALIASES: | 70 Pin, 2WS, 1MM, 6NZ, 7CZ, MBN, BXS, MXS, NXS, SDP |
| SUPPORTED COMMUNICATION PROTOCOL(S) | DLC PIN(S) |
|---|---|
| J1939 | 9 WAY J1939 DLC PINS C & D |
| J1587 | 9 WAY J1939 DLC PINS F & G |
POWERBLOCK CONNECTION
For communication on J1939 9-pin DLC pins C and D, this harness requires J1939 Pass-Thru Harness. OBD-II to J1939 9-Pin DLC Harness also required for programming interface tool connection to PowerBlock. Add-on harnesses sold separately. |
