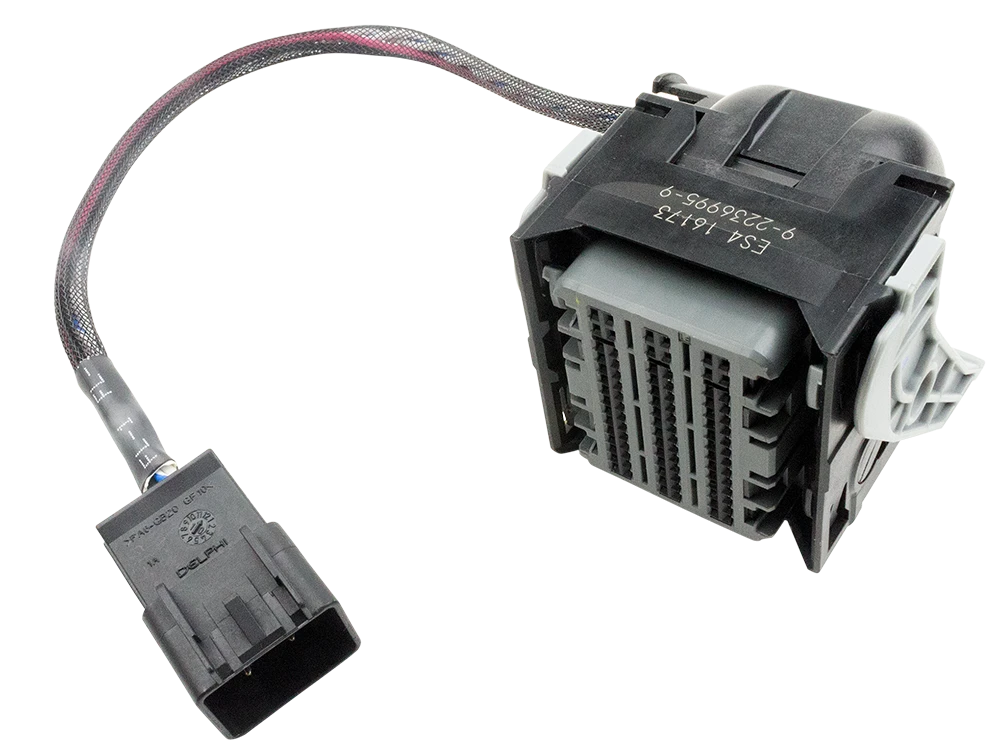

This Engine Control Module Bench Harness 18-23 Ford MG1CS019 (TC298) is for use with modern Ford Mustang GT vehicles and other modern Ford ECUs with Ti-VCT engines as well as F-350 Super Duty trucks.
| VEHICLE DETAILS | |
|---|---|
| MAKES: | Ford, Lincoln |
| MODELS: | Mustang, F-150, F-350, Edge, Nautilus |
| YEARS: | 2018-2023 |
| ENGINES: | 2.7L, 3.3L, 5.0L, 5.2L, 6.2L |
| MODULE: | Engine Module |
| USAGE: | Ford Edge 2.7L ST V6 6AT Ecoboost Ford F-150 3.3 V6 6AT Ford F-150 5.0 Ti-VCT V8 10AT Ford F-350 Super Duty 6.2 V8 10AT Ford F-350 Super Duty 6.2 V8 6AT Ford Mustang GT 5.0 Ti-VCT V8 10AT Ford Mustang GT 5.0 Ti-VCT V8 6MT Ford Mustang GT Export 5.0 Ti-VCT V8 10AT Ford Mustang GT Export 5.0 Ti-VCT V8 6MT Ford Mustang Shelby GT500 5.2 V8 7AT |
| ALIASES: | MG1CS019, TC298, TC-298, TC298TP |
| SUPPORTED COMMUNICATION PROTOCOL(S) | DLC PIN(S) |
|---|---|
| CAN BUS | 16 WAY OBD-II DLC PINS 6 & 14 |
POWERBLOCK CONNECTION
For communication on OBD-II DLC pins 2, 6, and 14, this harness requires OBD-II Pass-Thru Harness. OBD-II Pass-Thru Harness sold separately. |
