| VEHICLE DETAILS | |
|---|---|
| MAKES: | Ford |
| MODELS: | Econoline, E-Series, E-150, E-250, E-350, E-450 |
| YEARS: | 2009-2016 |
| ENGINES: | 4.6L, 5.4L |

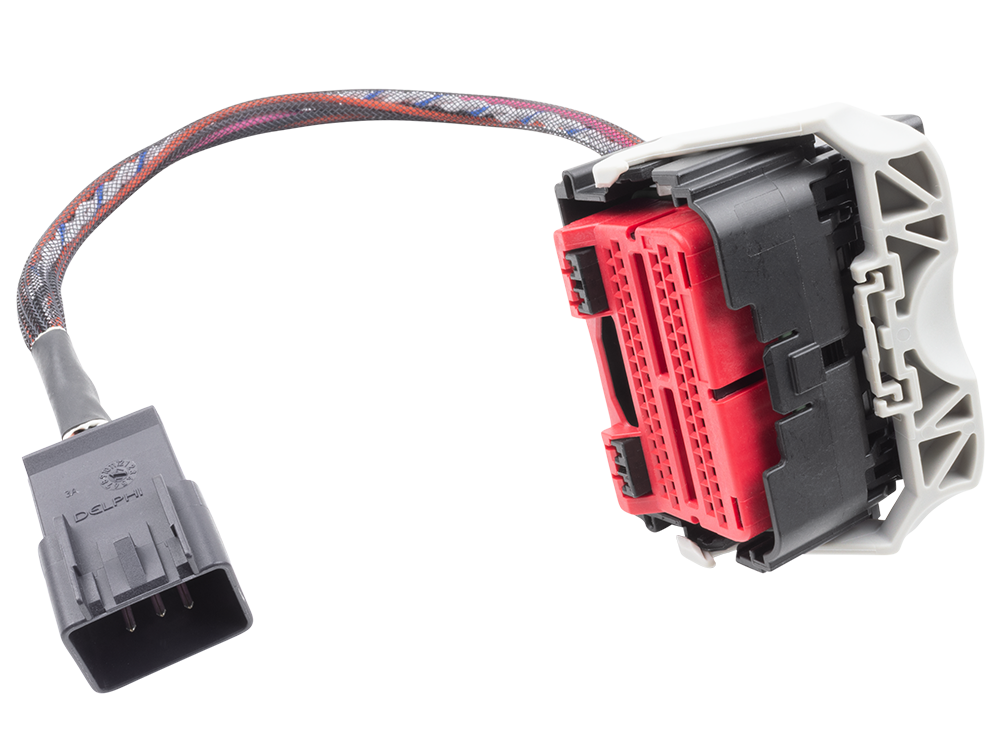

| MODULE: | Engine Module |
| USAGE: | 2009-2014 Ford E-150 4.6L 5.4L 2009-2014 Ford E-250 4.6L 5.4L 2009-2016 Ford E-350 4.6L 5.4L 2009-2016 Ford E-450 4.6L 5.4L |
| ALIASES: | |
| SUPPORTED COMMUNICATION PROTOCOL(S) | DLC PIN(S) |
|---|---|
| CAN BUS | 16 WAY OBD-II DLC PINS 6 & 14 |
| FEPS | 16 WAY OBD-II DLC PIN 13 |
POWERBLOCK CONNECTION
For communication on OBD-II DLC pins 6, 13, and 14, this harness requires Ford Pass-Through Harness to connect to PowerBlock. Ford Pass-Through Harness sold separately. |
