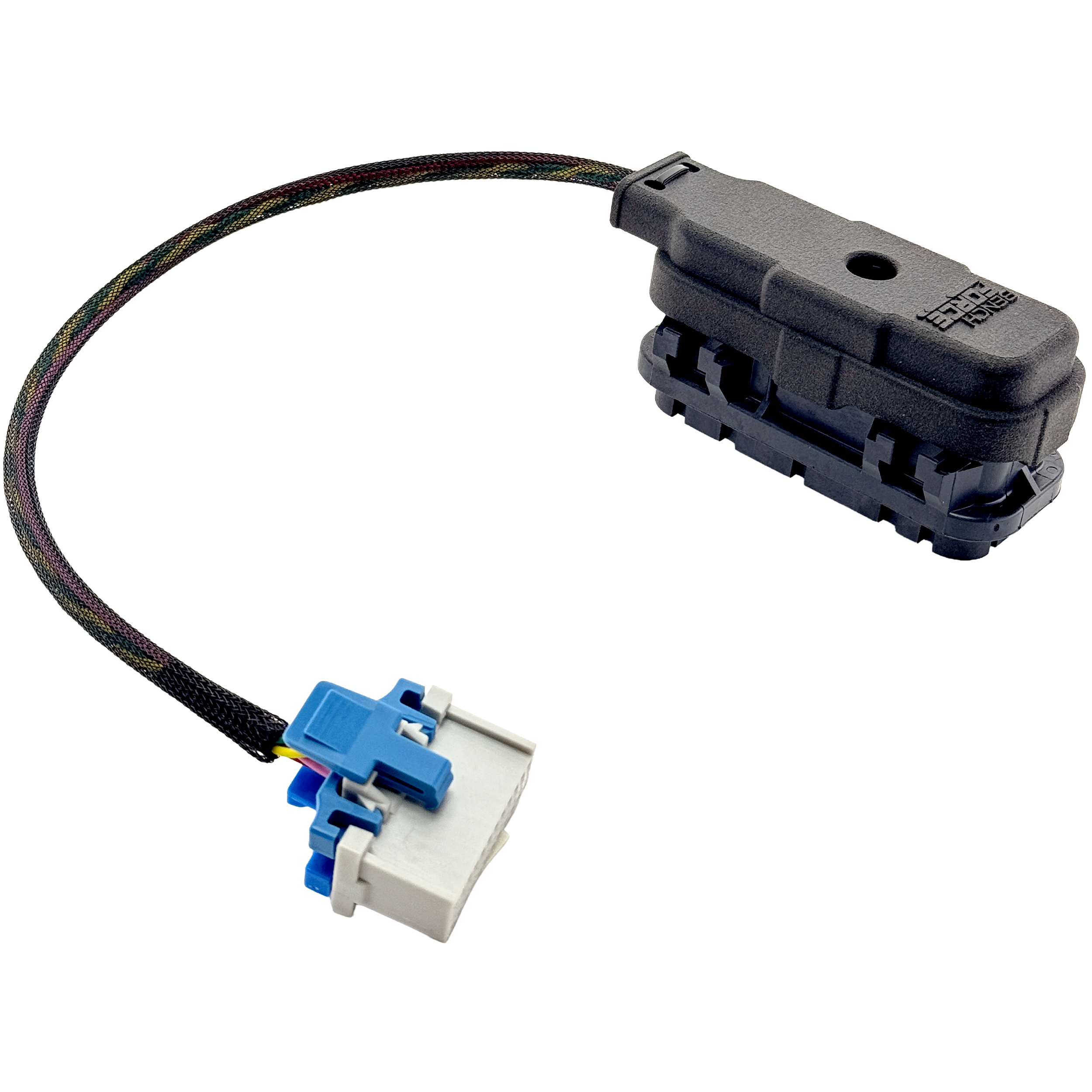

Engine Control Module Bench Harness John Deere Phoenix L21 L22 L23 L33 L34

This Engine Control Module Bench Harness John Deere Phoenix L21 L22 L23 L33 L34 is for ECU bench programming, diagnostics, and reprogramming many John Deere vehicles, heavy equipment, and agricultural machinery. Use with any diagnostic or programming tool, like John Deere Service Advisor and Dimsport New Genius.

VEHICLE DETAILS
MAKES:	John Deere
MODELS:
YEARS:
ENGINES:
MODULE:	Engine Module
USAGE:
ALIASES:	Phoenix L21, L22, L23, L33, L34

SUPPORTED COMMUNICATION PROTOCOL(S)	DLC PIN(S)
J1939	9 WAY J1939 DLC PINS C & D

POWERBLOCK CONNECTION

This harness has a direct connection to PowerBlock. No pass-thru harness required.

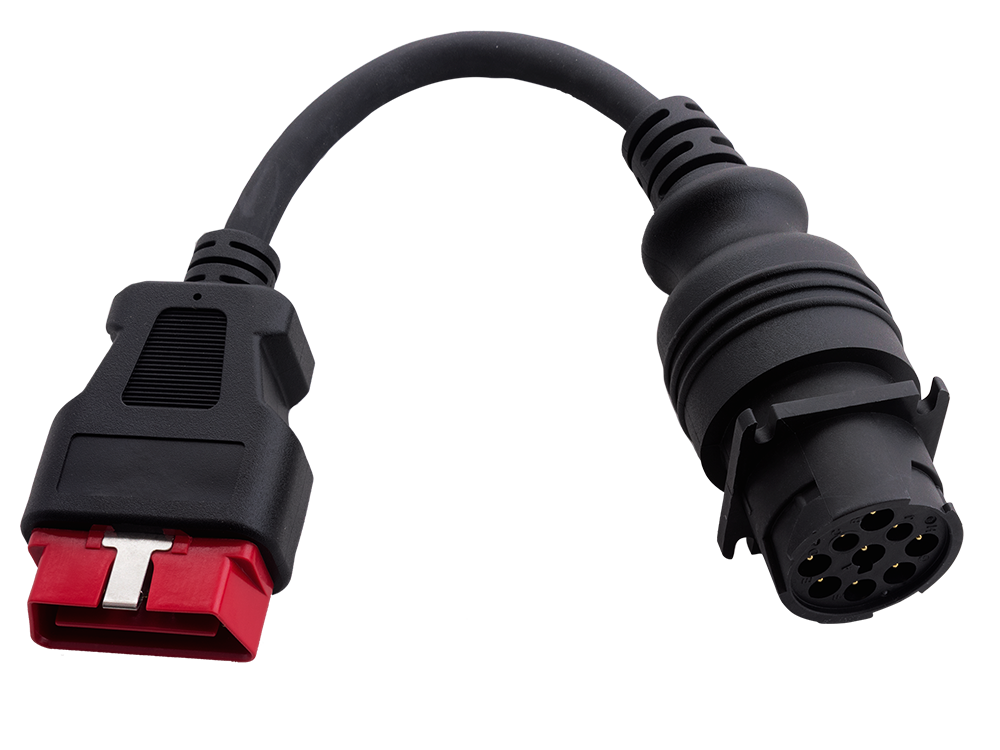

16 PIN OBDII DLC TO ROUND 9 PIN DLC

If your programming interface cable makes a connection to a round 9 pin DLC, please consider our 16 pin OBD-II DLC to 9 pin DLC p/n BF01077.
