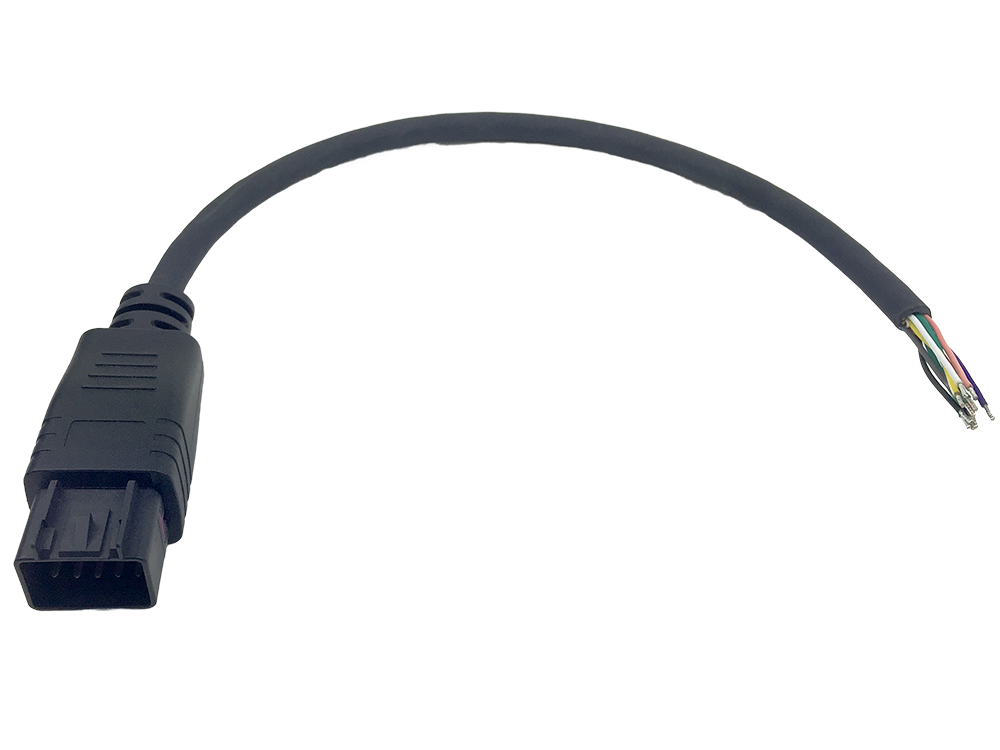

BenchForce 10W Pass-Through Pigtail - Single

SKU: BF01677
Regular price
$65.00
Sale price
$65.00

Build your own BenchForce style ECU harness using a pre-assembled 10 cavity connector pigtail. Mates with any of our pass-through harnesses. Roughly 18 inches. Pinout as follows...

TWISTED PAIR:

  • A: GREEN
  • F: YELLOW

TWISTED PAIR:

  • D: PURPLE
  • J: BLUE

TWISED PAIR:

  • E: BLACK
  • K: RED

OTHER WIRES:

  • B: GRAY
  • C: WHITE
  • G: PINK
  • H: LIGHT GREEN
