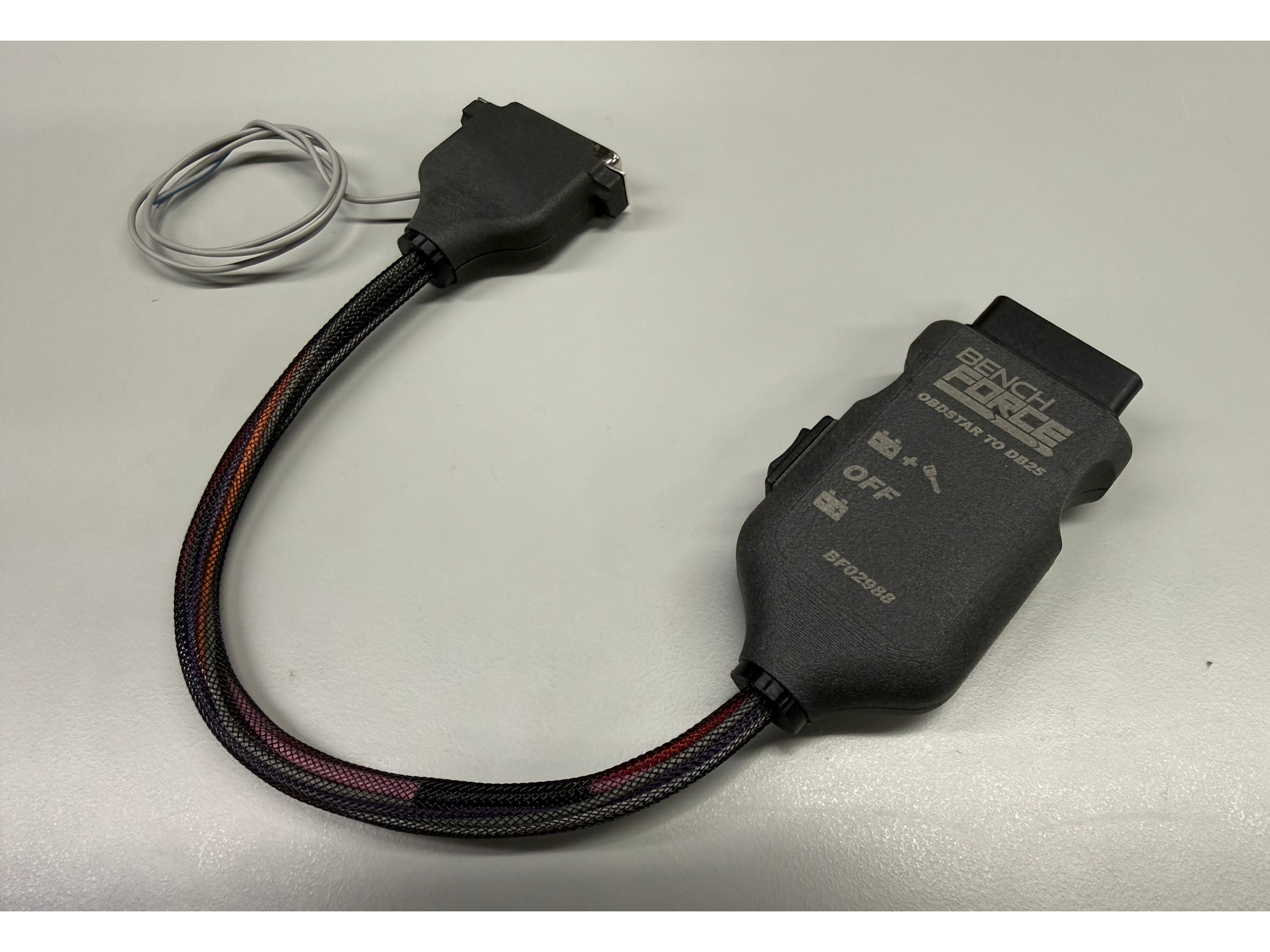

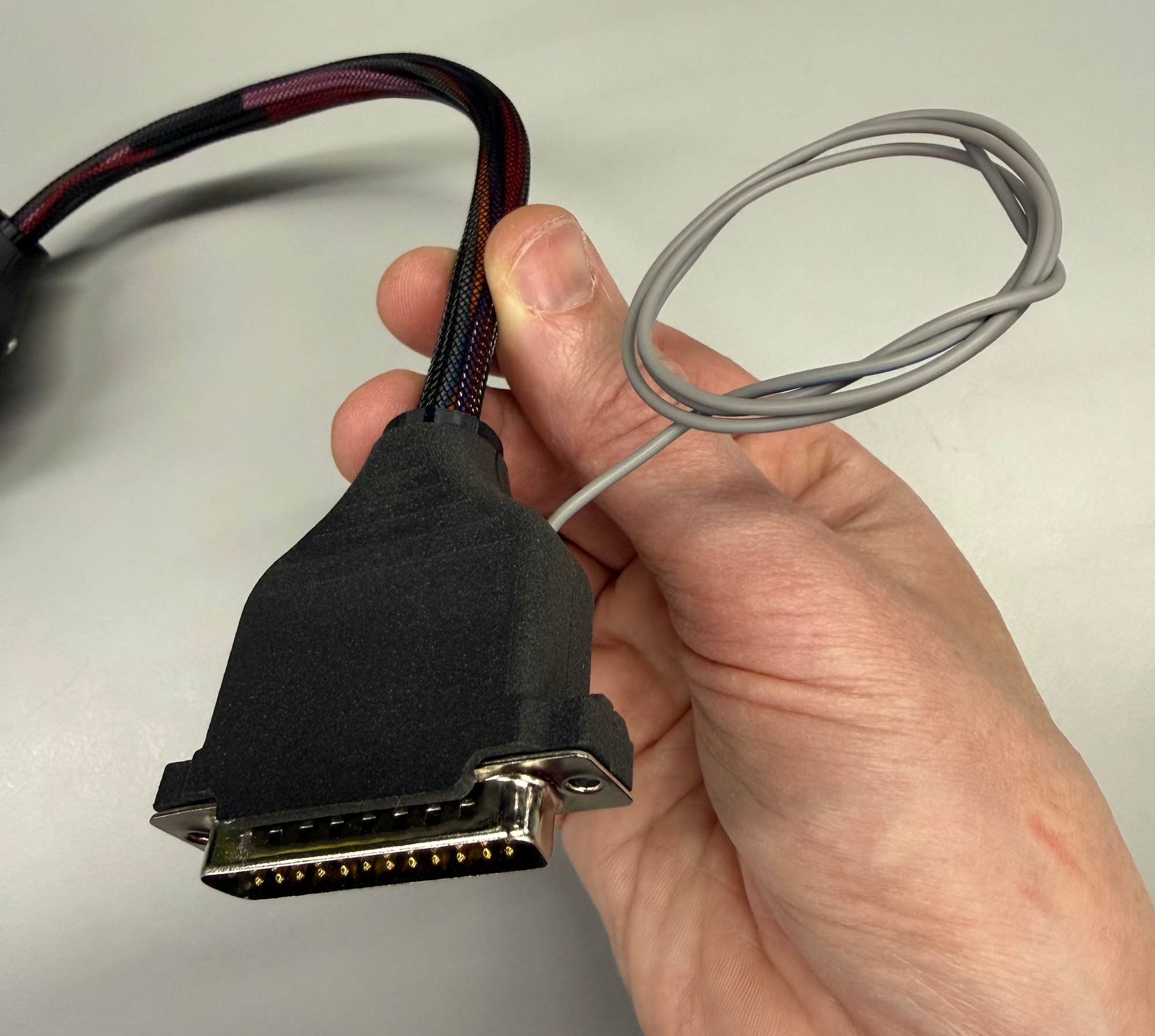

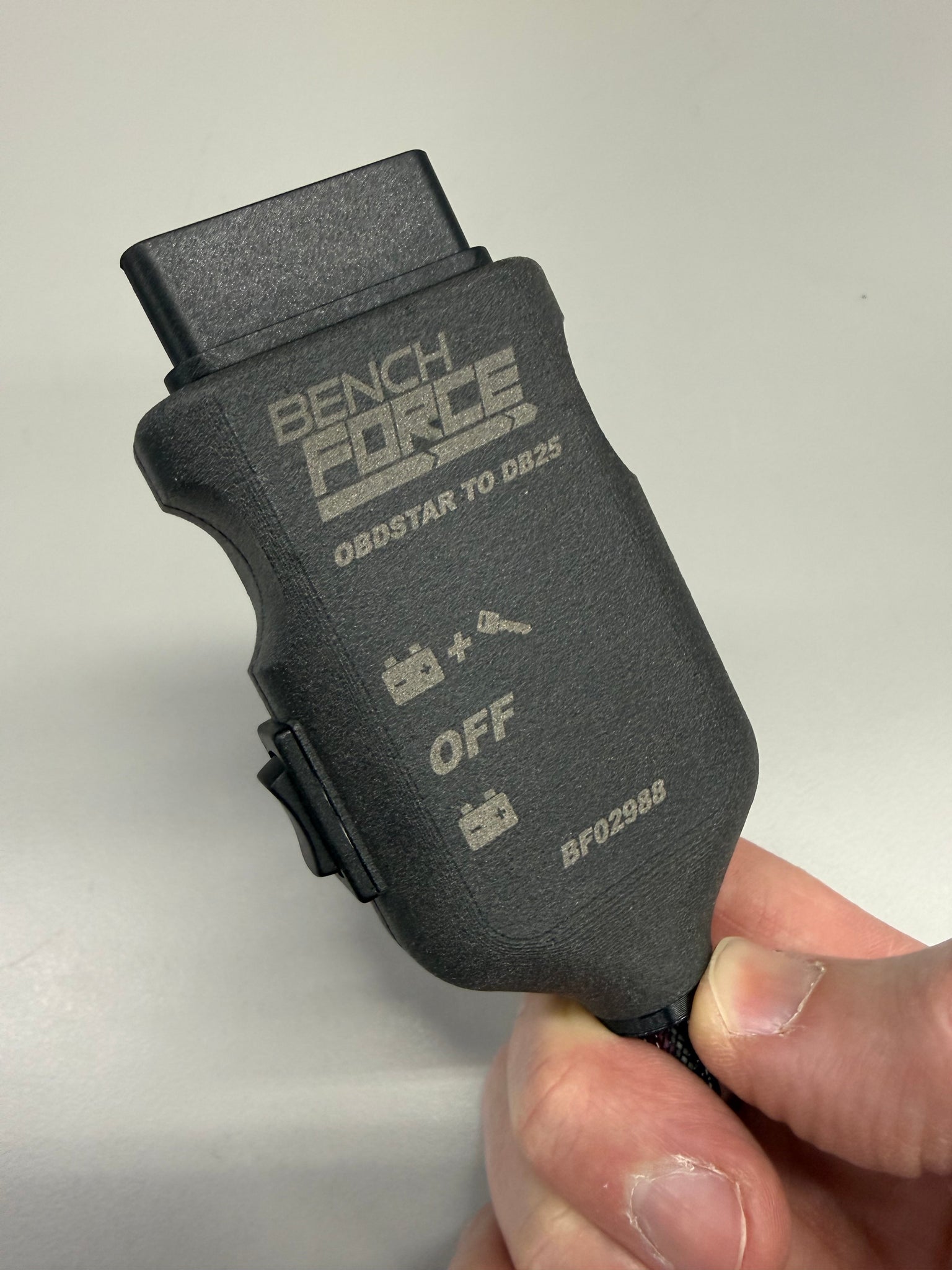

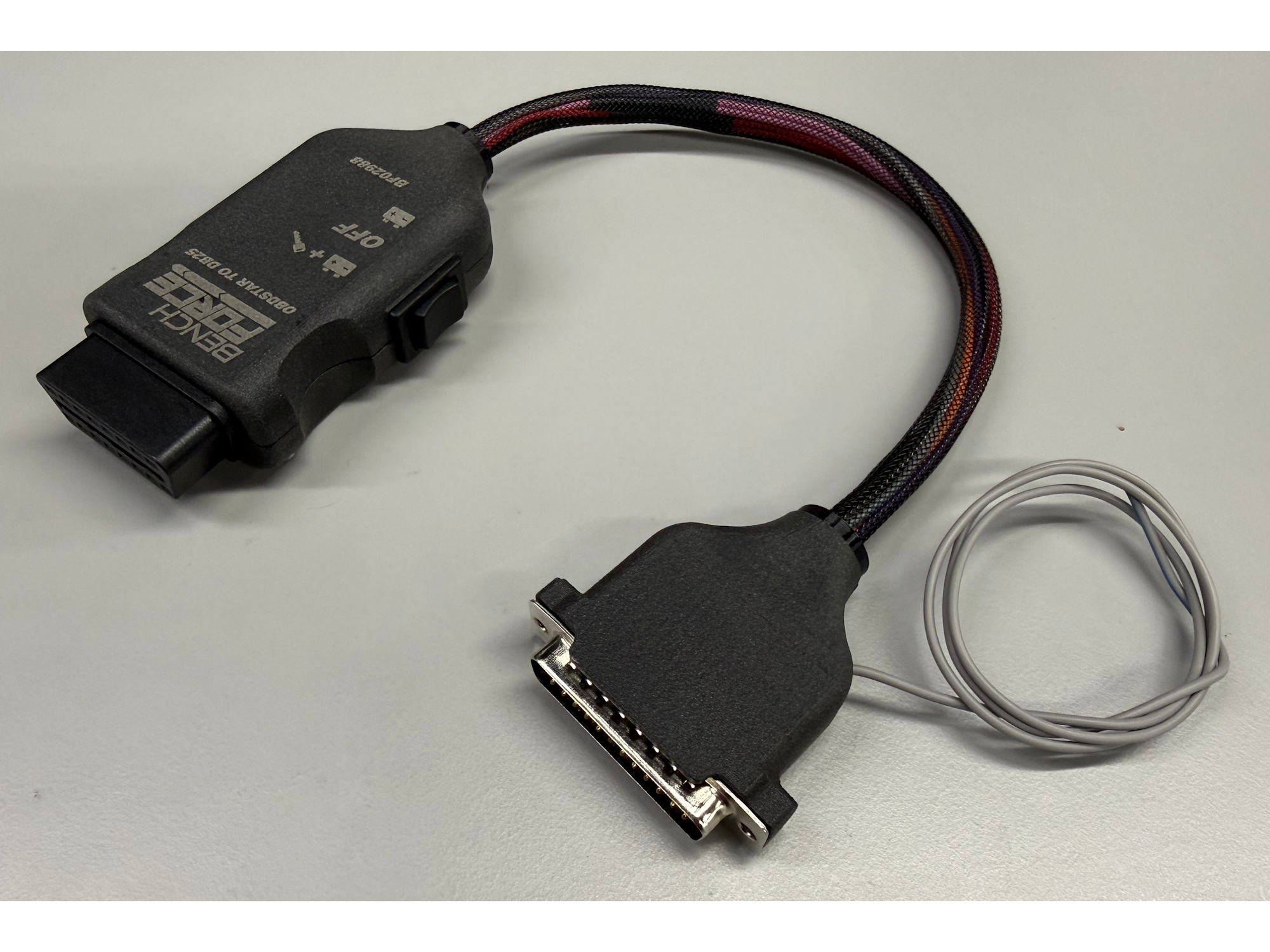

This OBDSTAR to D-sub 25 Harness by BenchForce is for use with the OBDSTAR programming interface. Use this harness to adapt the OBDSTAR 16 pin connector to a D-Sub 25 connection following the pinout details below. Notice the three way rocker switch is used to apply ignition power on D-Sub 25 pins 19 & 20.
PINOUT DATA
| OBD-II PIN | FUNCTION | D-SUB 25 PIN |
|---|---|---|
| 4 | GROUND | 4 |
| 5 | GROUND | 5 |
| 6 | CAN + | 6 |
| 7 | KLINE | 7 |
| 8 | BOOT PIN | - |
| 9 | GPT0 | 9 |
| 10 | GPT1 | 10 |
| 11 | SWITCHED IGNITION | 19 & 20 |
| 14 | CAN - | 14 |
| 15 | LLINE | 15 |
| 16 | BATTERY POSITIVE | 23 & 24 |
SUPPORTED PRODUCTS:
 |

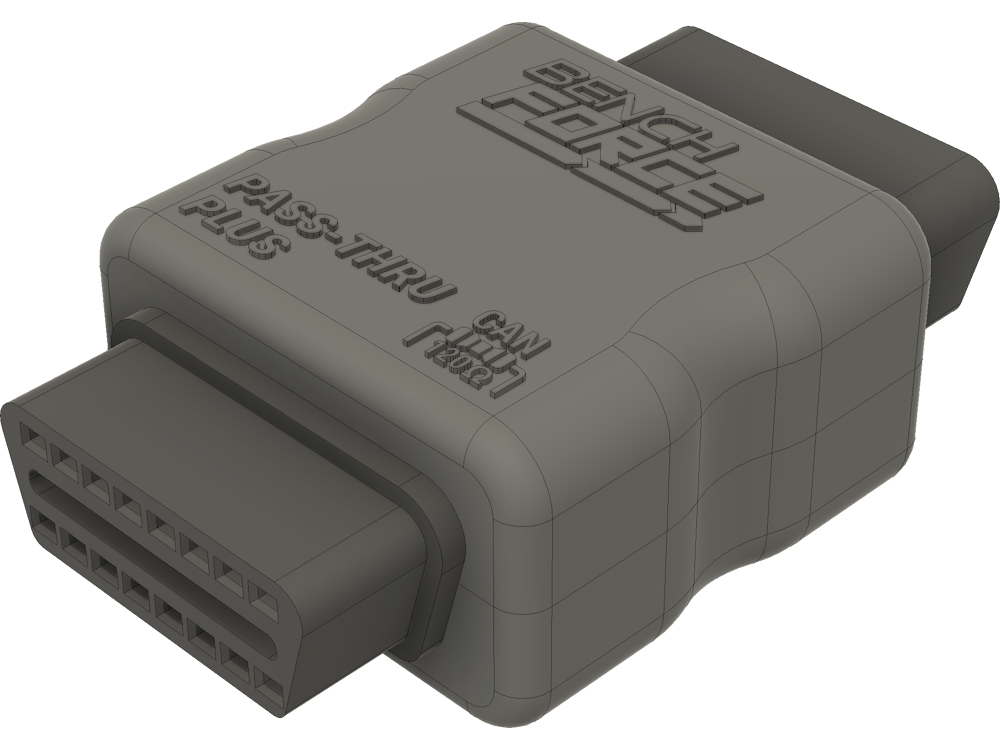

BF02979 | BenchForce OBD-II Pass Through Device w/ 120 Ohm CAN Termination |
