| VEHICLE DETAILS | |
|---|---|
| MAKES: | Buick, Cadillac, Chevrolet, GMC, Holden, Pontiac, Saturn |
| MODELS: | Acadia, Camaro, Cobalt, Commodore, CTS, Enclave, HHR, Outlook, Sky, Solstice, STS, Traverse |
| YEARS: | 2006-2011 |
| ENGINES: | 2.0L, 3.6L |
| MODULE: | Engine Module |
| USAGE: | |
| ALIASES: | E69 LS9 |
| SUPPORTED COMMUNICATION PROTOCOL(S) | DLC PIN(S) |
|---|---|
| CAN BUS | 16 WAY OBD-II DLC PINS 6 & 14 |
| K-LINE | 16 WAY OBD-II DLC PIN 7 |

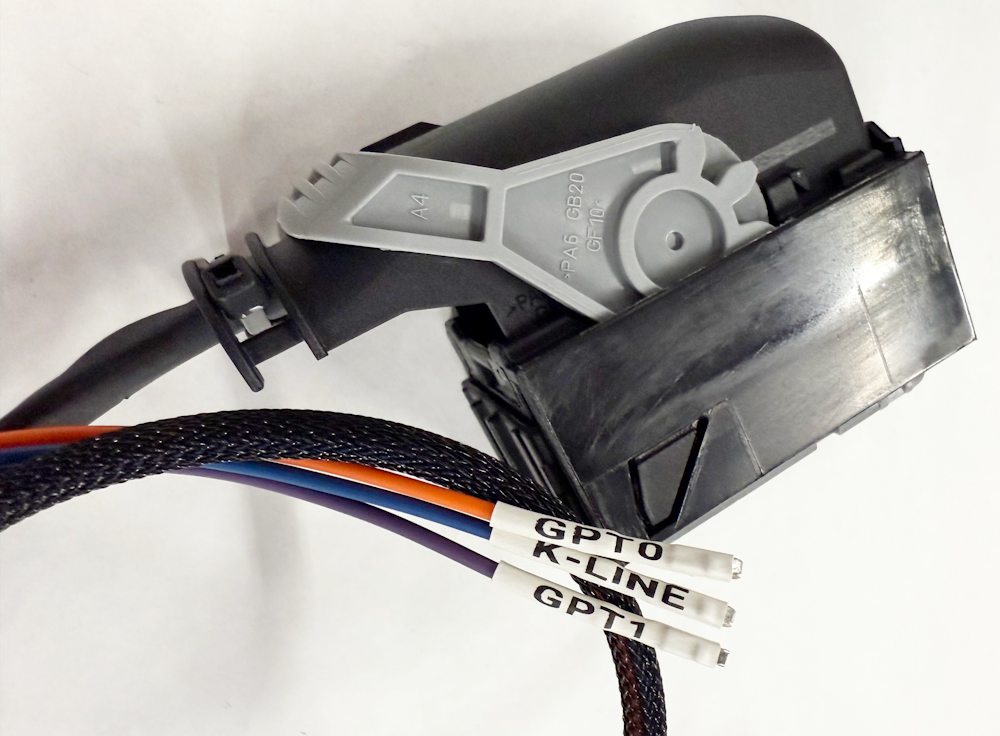

| GPT0 GPT1 |
16 WAY OBD-II DLC PIN 9 16 WAY OBD-II DLC PIN 10 |

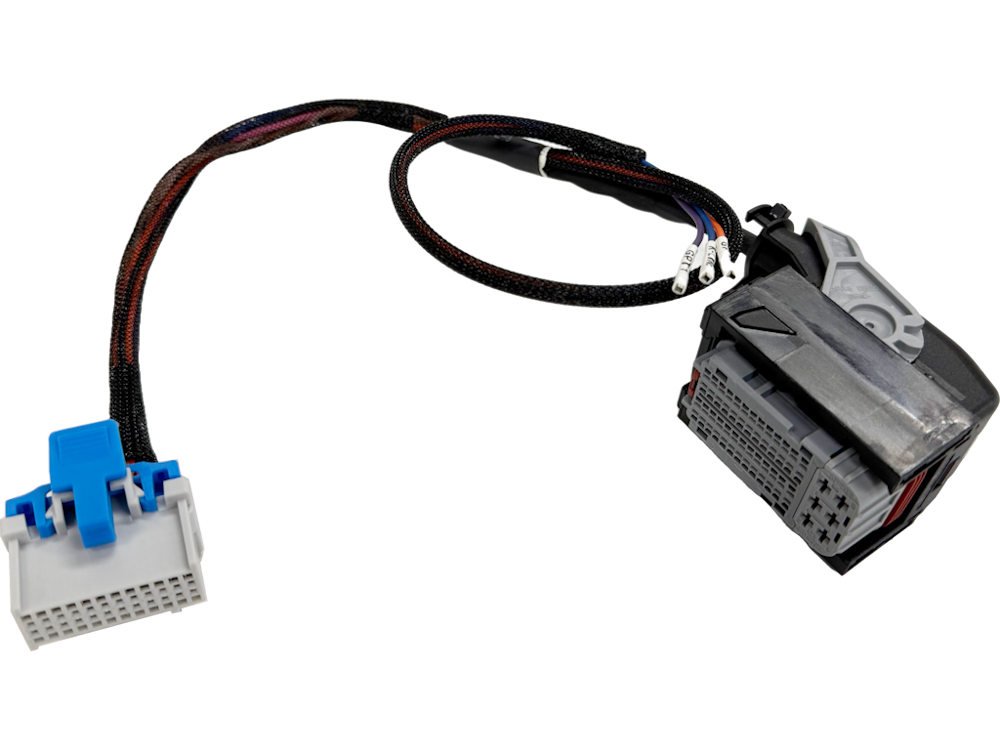

POWERBLOCK CONNECTION
This harness has a direct connection to PowerBlock. No pass-thru harness required. |
