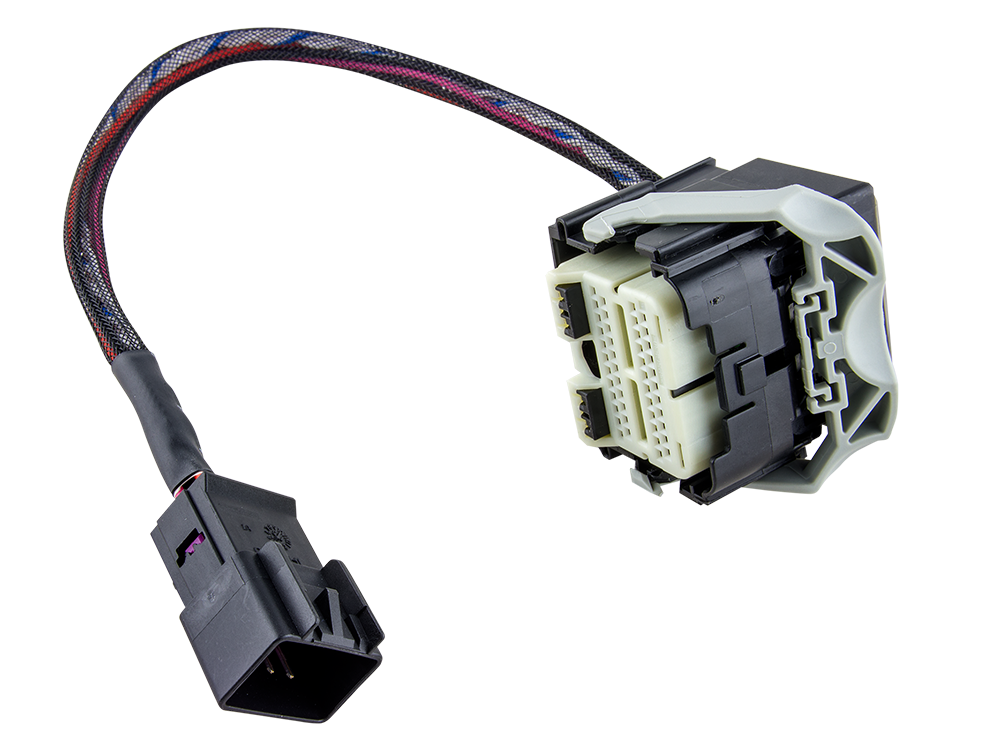

| VEHICLE DETAILS | |
|---|---|
| MAKES: | Ford, Mercury |
| MODELS: | Explorer, Mountaineer, Mustang |
| YEARS: | 2004-2010 |
| ENGINES: | 4.0L, 4.6L, 5.4L |
| MODULE: | Engine Module |
| USAGE: | 2004-2010 Ford Explorer 4.0L 2004-2010 Ford Explorer 4.6L 2004-2010 Mercury Mountaineer 4.0L 2004-2010 Mercury Mountaineer 4.6L 2005-2010 Ford Mustang 4.0L 2005-2010 Ford Mustang 4.6L 2007-2010 Ford Mustang 5.4L |
| ALIASES: | Oak Series |
| SUPPORTED COMMUNICATION PROTOCOL(S) | DLC PIN(S) |
|---|---|
| CAN BUS | 16 WAY OBD-II DLC PINS 6 & 14 |
| FEPS | 16 WAY OBD-II DLC PIN 13 |
POWERBLOCK CONNECTION
For communication on OBD-II DLC pins 6, 13, and 14, this harness requires Ford Pass-Through Harness to connect to PowerBlock. Ford Pass-Through Harness sold separately. |
